There are no tougher jobs than those on construction sites, demolition operations and in rescue work. And a STIHL Cutquik® cut-off machine can be an ideal companion on those jobs. STIHL cut-off machines are number one worldwide and they deliver superior power and convenient controls. You'll find that same top quality and power for your other tough jobs in our wood boring drills and augers, too! So make sure you have construction tools on the job site that deliver. Get STIHL quality, dependability and power today.
STIHL Cutquik® cut-off machines are able to cut through some of the toughest rock and metal. They can help to make your next construction job easier and quicker.
STIHL Cutquik® Cut-Off Machines are the right choice for your next construction job. Professionals trust STIHL for quality, dependability and performance. When the cutting gets tough, that's when the pros turn to STIHL. STIHL Cutquik® cut-off machines power right through concrete, metal, asphalt, masonry, stone or ductile iron. The new TS 410 and TS 420's air filtration system eliminate filter cleaning.
When it comes to demolition work, or cutting curbs and expansion joints, STIHL Cutquik® cut-off machines can help make the job quicker and easier. Check out a STIHL Cutquik® cut-off machine and get all the power and portability to get your next construction job done right.

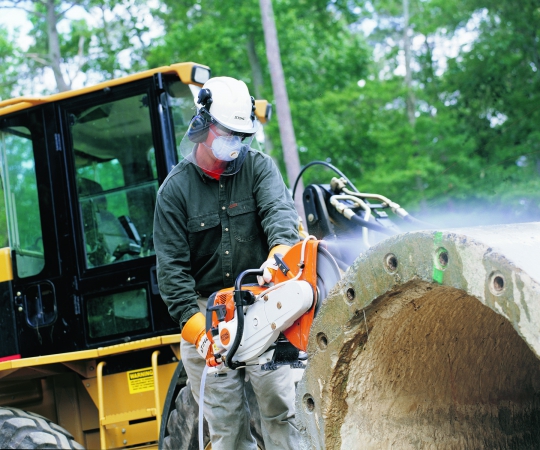

With a powerful, high-speed engine it's easy to see why the TS 700 STIHL Cutquik® cut-off machine is one of the most advanced STIHL Cutquik® ever produced. Featuring the X2 low maintenance filtration system, you get extended service cutting and airflow with almost 100 percent cleaning efficiency. Not only is this cut-off machine lightweight and well balanced, it also features a five-point dual element vibration control system — the right choice for even the most demanding professionals.
Water Attachment Kit
Reversible Cutting Arm lets you cut in the inboard our outboard position.
Semi-Automatic Belt Tensioner allows for easy adjustment of drive belt.
Water Kit reduces dust when cutting concrete.
Spark Arrestor Muffler has large baffles which reduce noise level, and contains a screen designed to reduce the emission of sparks.
Anti-Vibration System reduced operator fatigue.
Long-Life Cylinders give maximum wear life, better cooling and lubrication, and more power output per cubic centimeter of engine displacement.
2-Ring Pistons improve engine efficiency and hold compression longer than 1-ring pistons. Also they transfer heat from the piston to cylinder better, helping engine stay cooler and last longer.
Protected Decompression Valve makes starting easier.
High-Performance Cooling System for superior air flow and heat dissipation.
High-Tech Polymer Housings are lightweight and are corrosion-resistant.
Spark Plug is protected yet easy to change.
ElastoStart™ Handle has a built-in shock absorber for smoother starting.
On/Off Switch is conveniently located on top of handle and recessed to prevent accidental shutdown.
Protected Throttle Trigger helps prevent damage.
Throttle Trigger Interlock must be depressed before the trigger can be activated.
Easy-Access Carburetor Adjustment Screws let you adjust the carburetor for local cutting and altitude conditions.
Bayonet Style Fuel Cap with retainer for easy use, even with gloves on.
Upright and Enlarged Fuel Port for easy fueling.
Air Filter Cover is easy to remove for fast and easy filter replacement.
Heavy-Duty Air Filtration System. The TS 410, TS 420, TS 700 and TS 800 feature the X2.
Replaceable "In Tank" Fuel Filter lowers cost and is easy to maintain.
Specifications
Displacement: 98.5 cc (6.0 cu. in.)
Engine Power: 6.7 bhp (5.0 kW)
Weight (Weight includes water attachment and guard.): 25.6 lbs. (11.6 kg)
Fuel Tank Capacity: 40.6 oz. (1200 cc)
Engine Speed: 9,300 rpm (Elec. Gov.)
Max. Spindle Speed: 5,350 rpm
Arbor Size: 20 mm
Maximum Wheel Size: 14 in. (350 mm)
Maximum Cutting Depth: 4.9 in. (125 mm)
Standard Features
X2 low-maintenance air filtration system
Powerful and fuel-efficient, low-emission engine
IntelliCarb™ compensating carburetor
Semi-automatic belt tensioner with innovative treaded belt
Large upright fueling opening with retainer and cap
Sealed bearings with two-piece precision-machined crankshaft
ElastoStart™ starter handle and decompression valve
Durable polymer protective casing
Five-point advanced vibration control system
Reversible wheel guard for inboard or outboard cutting
Integrated water attachment
Additional Features
Electronic Ignition provides easy starting and smooth running.
IntelliCarb™ Compensating Carburetor measures air on clean side of air filter and adjusts metering diaphragm in carburetor, maintaining optimal fuel-to-air ratio. Keeps RPM levels even when the air filter begins to clog.
Balance and Design helps reduce fatigue and makes handling easy.
NOTES:
STIHL Cutquik® cut-off machines have many common features. However, all models may not have all the features shown here. Consult your dealer for details.
